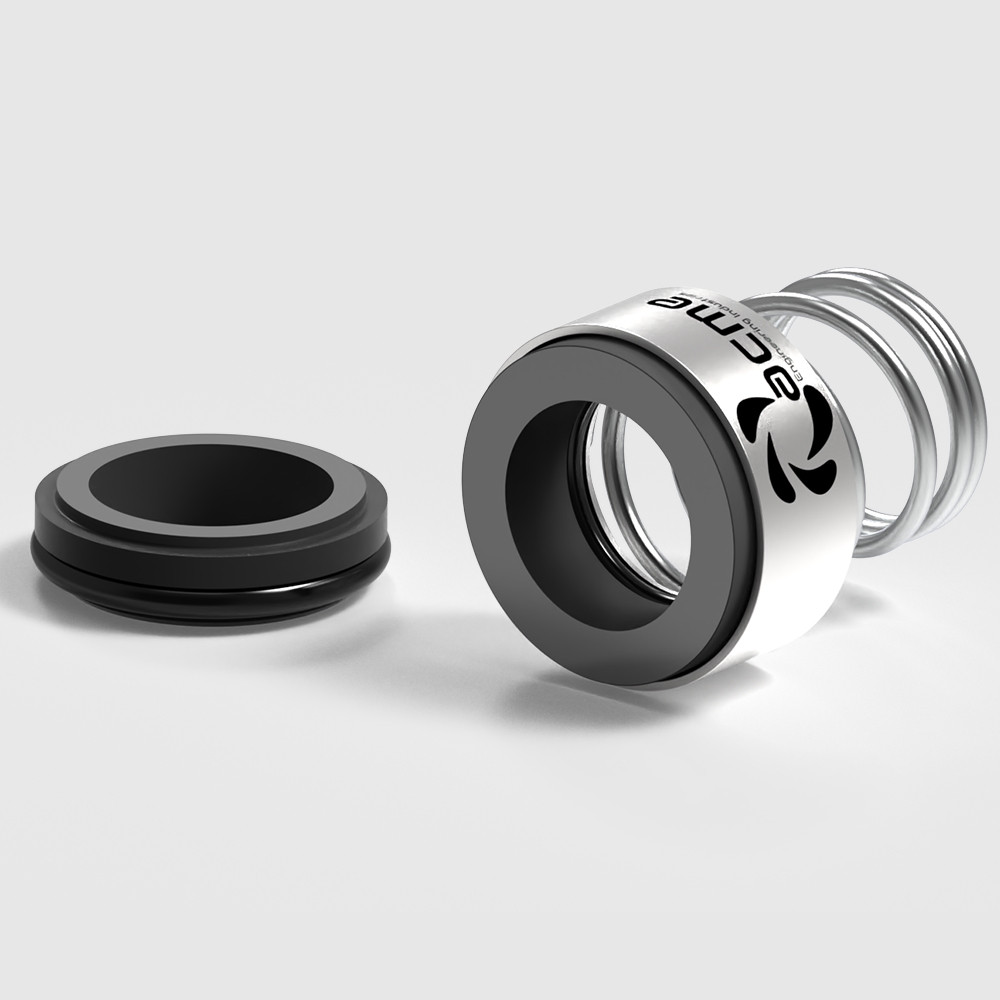

33N-RT5

It’s conical spring seal, very useful to replace only faces during the maintenance. This is an O ring mounted seal suitable for heavy duties in pumps. Suitable for handling liquids with small solid particles. Many variations possibility for seal faces.

Seal Characteristics

• Single Acting

• Internal Mounted

• Dependent of Direction of Rotation

• Unbalanced

Operating Limits

• Shaft Diameter    : 10….150mm

• Pressure        : 10 Bar

• Temperature    : -30° to 180° C

Materials

• Rotary Face : Carbon/SiC/TC/Ceramic

• Stationary Seat : Ceramic/Carbon/TC/SiC

• Elastomer : NBR/EPDM/Viton/Silicon
