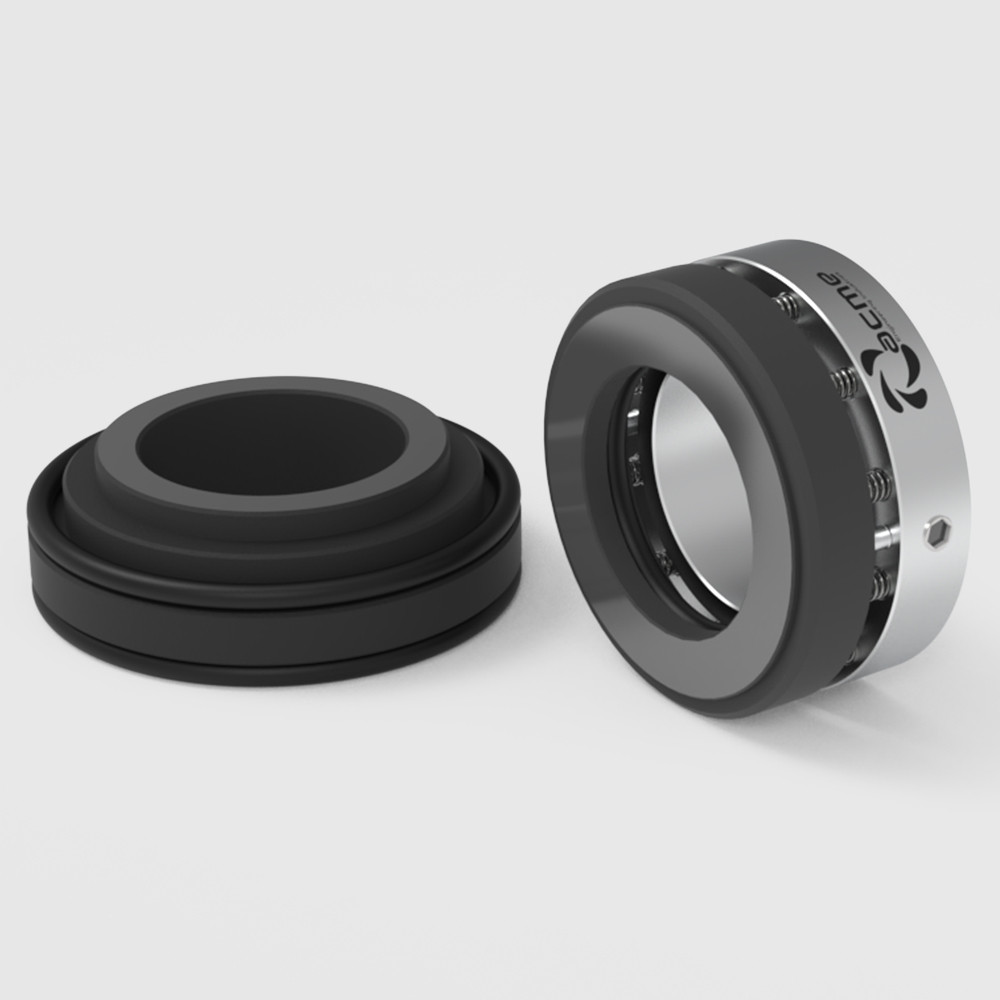

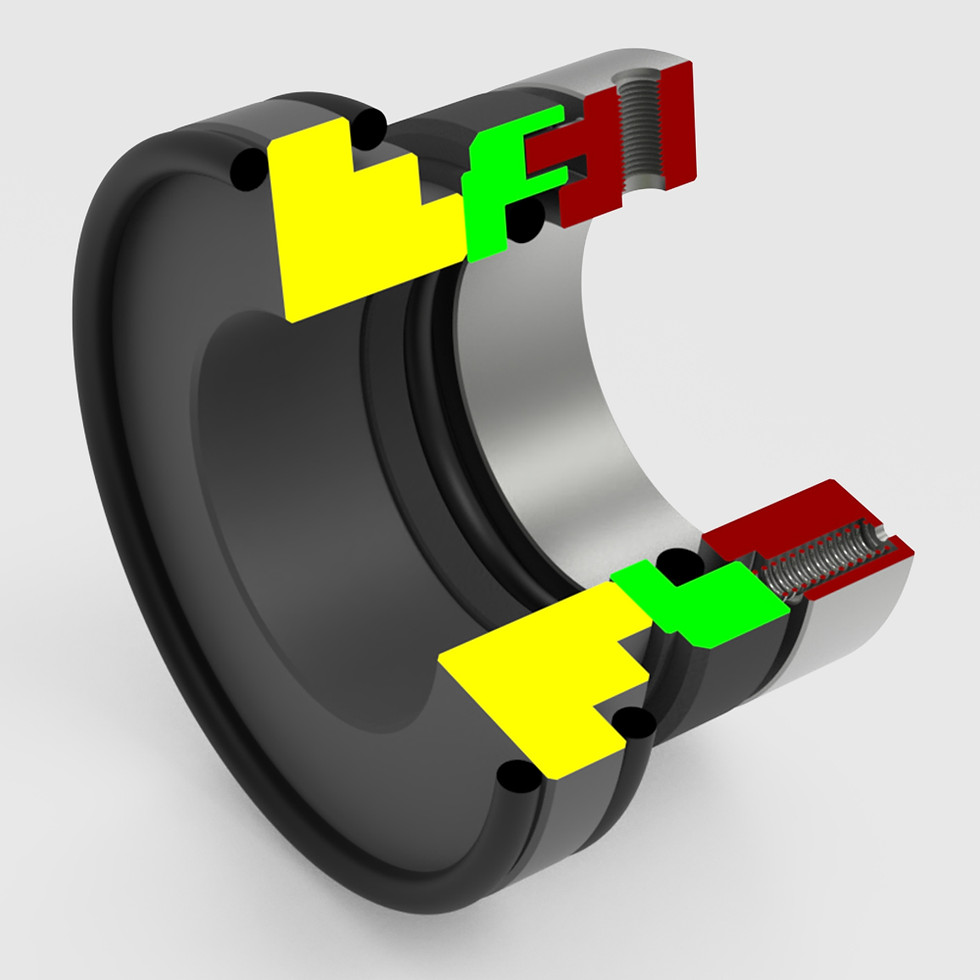

FT

This FT seal is specially designed to handle corrosive fluids in Chemical industry. Widely used in chemical process pumps. Dynamic O ring design makes it very reliable and balanced seal.

Seal Characteristics

• Single Acting

• External Mounted

• Independent of Direction of Rotation

• Balanced

Operating Limits

• Shaft Diameter    : 20….150mm

• Pressure        : 10 Bar

• Temperature    : -30° to 180° C

Materials

• Rotary Face : Carbon/SiC/SS

• Stationary Seat : Ceramic/Carbon/TC/SiC/SS

• Elastomer : NBR/EPDM/Viton/Silicon
